11 Inch 1 Pen Circular Chart Recorder With Display
11 Inch 1 Pen Circular Chart Recorder With Display 11 Inch 1 Pen Circular Chart Recorder With Display 11 Inch 1 Pen Circular Chart Recorder With Display 11 Inch 1 Pen Circular Chart Recorder With Display 11 Inch 1 Pen Circular Chart Recorder With Display 11 Inch 1 Pen Circular Chart Recorder With Display 11 Inch 1 Pen Circular Chart Recorder With Display 11 Inch 1 Pen Circular Chart Recorder With Display

11 Inch 1 Pen Circular Chart Recorder With Display

Product Details:

  • Power 10 Watt (w)
  • Operate Method Manually
  • Material ABS Plastic
  • Color Black & Grey
  • Dimension (L*W*H) 411x376x130 Millimeter (mm)
  • Product Type Circular Chart Recorder
  • Application Pharmaceutical,Hydro testing , Laboratory , Dairy , Tyre , Rubber
  • Click to View more
X

11 Inch 1 Pen Circular Chart Recorder With Display Price And Quantity

  • 1 Unit

11 Inch 1 Pen Circular Chart Recorder With Display Product Specifications

  • Circular Chart Recorder
  • Pharmaceutical,Hydro testing , Laboratory , Dairy , Tyre , Rubber
  • 0.5%FSD 1 Digit %
  • 12V 7Ah External Lead Acid battery
  • 85-264VAC 47-63Hz Volt (v)
  • Manually
  • 411x376x130 Millimeter (mm)
  • ABS Plastic
  • 10 Watt (w)
  • LED
  • Data Recorder
  • Black & Grey

11 Inch 1 Pen Circular Chart Recorder With Display Trade Information

  • Baroda
  • 15 Days
  • Carton box
  • All India
  • ISO 9001:2015 , ISO 14001:2015

Product Description

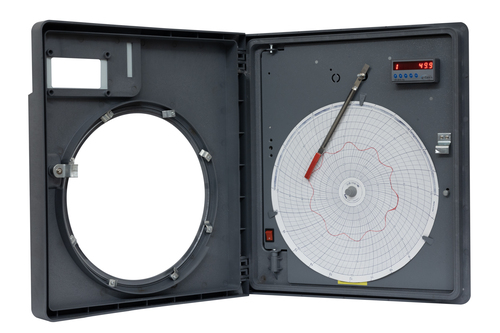

CR2010 series of circular chart recorders are available in 3 different sizes of the charts ie 46 and 11 The 11 chart recorder is very useful when you want to monitor your process unattended

These recorders are widely used in hydro testing or pressure leak testing process industry for monitoring of various processes like incubation curing pasteurization etc It takes direct input from RTD Pt100 Thermocouples  process inputs like 420mA  020mA  01V These recorders are micro controller based Crystal controlled chart drive ensures accurate chart speed Stepper motors for both pens and chart drive ensures no lag and no backlass

A cutout of 319x323 mm makes it a perfect fit for replacing any of your existing recorders of any make Transparent polycarbonate door window makes the chart visible from the distance They come with a universal power supply as a standard feature Other power supply inputs are also available

Features

  • 11 Chart Width
  • One to Four Analog Input channels
  • Universal Power Supply 85264 V AC, 47-63Hz
  • Other power supply inputs on request
  • Direct Input standard PT100/Thermocouple sensor
  • Process Input through 4-20mA or 0-20mAand 0-1Volt
  • 1 hour rev to 255 hours rev chart speed
  • Other Chart Rotation available on request
Specification

Product Type

Circular chart recorder

Color

Grey

Dimension

232x205x117

Application

Pharmaceutical, Laboratory Blood Bank, Dairy , Furnance

Material

ABS Plastic

Power

10W Max With Maximum Configuration

Voltage

85-264V, AC 47-63Hz

Operate Method

Manually

Type

Data Recorder

Display Type

LED

Accuracy

-/+0.5%FSD-/+1 Digit

Battery

12V 7Ah External Lead Acid battery

Temperature Range

Programmable
